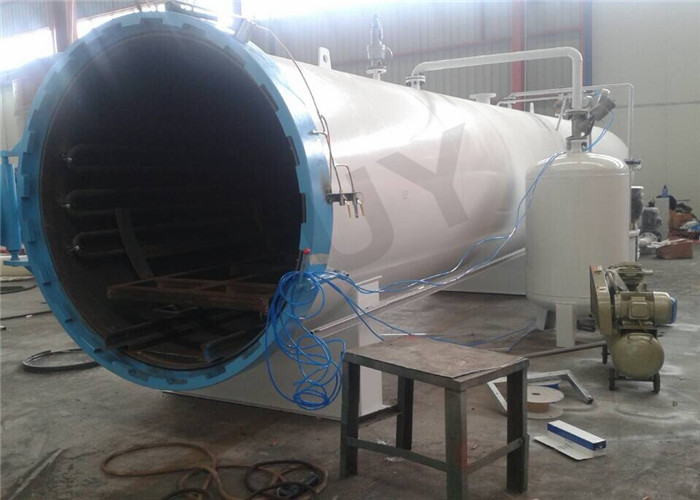

Automatic Control Pressure Creosote Treatment Plant With Heating System Customize
Ⅰ Product description
This machine equipped with heating system, the heat source can be provided by a thermal oil furnace or a steam boiler. If the customer's company does not have a boiler, we can also provide it for you.
Creosote wood pole treatment plant is mainly used to treat creosote wooden pole, and is suitable for non-water soluble pharmaceuticals such as creosote oil.
Ⅱ Main Model
| Type | Effective Diameter(mm) | Effective Length(mm) | Total capacity(cubic meter) | Effective treat capacity(cubic meter) |
| DC1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DC1800*12000 | 1800 | 12000 | 30.5 | 20.3 |
| DC1800*24000 | 1800 | 24000 | 61.0 | 40.6 |
| DC2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DC2200*16000 | 2200 | 16000 | 60.8 | 40.5 |
| DC2500*26000 | 2500 | 26000 | 127.5 | 85.0 |
| DC1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DC1500*8000 | 1500 | 8000 | 14.1 | 9.4 |
Note: If the above model is not available, please tell us the diameter and length of the equipment you need. We can customize it for you. The maximum diameter which we can customize is 4.5m, the length can be customized according to users' needs.
Ⅲ Technical parameters
Design temperature(℃): 150℃
Design pressure(Mpa): 1.58Mpa
Open door ways: Manual quickly open door
Seal ways: Inflatable silicone seal
Safety ways: Double safety interlock ,tank with three safety interlock
Working pressure:1.0-1.4mpa
Material: Q345R carbon steel(high pressure vessel special material
Ⅳ Technology Process
1. Initial vacuum ,before add creosote ,begin initial vacuum,the purpose is to extract air cell ,reduce the resistance when the creosote entry into the wood/wood poles,in order to immerse better wood/wood poles The vacuum degree is 79.8-90kpa ,the time is up to product requirement.
2. Add creosote . In the vacuum state ,we add creosote ,and there is liquid level with storage tank ,after fill of the creosote oil .stop the valve.
3. heat stage ,open open button to heat creosote oil to dilute it.
4. Increase pressure : increase pressure into 1.0-1.4Mpa ,then keep pressure.
5. Discharge pressure and discharge creosote ,open the valve ,let the creosote oil come back to storage tank ,when it get liquid gauge level min limited , stop the valve.
6. Final vacuum ,open the vacuum system ,to extract the rest creosote oil ,reduce dropping liquid
7. take out of wood/wood poles.
Ⅴ Advantages
1. The material is Q345R steel which has good physical properties.
Material is we purchased from famous manufacturer, quality is absolutely guaranteed.
2. Automatic submerged arc welding, it has advantages of good weld quality and good weld appearance. It also hasn’t arc radiation. And our company has own special flaw detection to ensure the quality of the machine.
3. Open door manually, open the door by electricity, open the door by hydraulic. Advanced open door method ,only one young girl can open the door easily.
4. Automatic pressure safety interlocking method and manual safety interlocking method, it solved the safety problem of wrong operation.
5. Our equipment using automatic angle seat valve, it can automatically make the equipment to maintain the vacuum. So the vacuum degree is better than other equipments.
